Pipeline Parallelism

Pipeline parallelism was original introduced in the Gpipe paper and is an efficient technique to train large models on multiple GPUs.

Warning

Pipeline Parallelism is experimental and subject to change.

Model Parallelism using multiple GPUs

Typically for large models which don’t fit on a single GPU, model parallelism is employed where certain parts of the model are placed on different GPUs. Although, if this is done naively for sequential models, the training process suffers from GPU under utilization since only one GPU is active at one time as shown in the figure below:

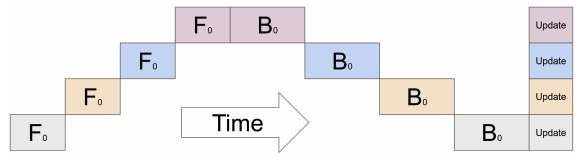

The figure represents a model with 4 layers placed on 4 different GPUs (vertical axis). The horizontal axis represents training this model through time demonstrating that only 1 GPU is utilized at a time (image source).

Pipelined Execution

To alleviate this problem, pipeline parallelism splits the input minibatch into multiple microbatches and pipelines the execution of these microbatches across multiple GPUs. This is outlined in the figure below:

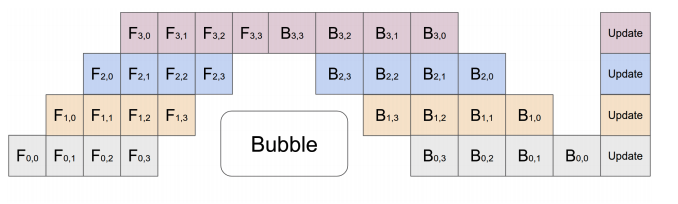

The figure represents a model with 4 layers placed on 4 different GPUs (vertical axis). The horizontal axis represents training this model through time demonstrating that the GPUs are utilized much more efficiently. However, there still exists a bubble (as demonstrated in the figure) where certain GPUs are not utilized. (image source).

Pipe APIs in PyTorch

class torch.distributed.pipeline.sync.Pipe(module, chunks=1, checkpoint='except_last', deferred_batch_norm=False)

Wraps an arbitrary nn.Sequential module to train on using synchronous pipeline parallelism. If the module requires lots of memory and doesn’t fit on a single GPU, pipeline parallelism is a useful technique to employ for training.

The implementation is based on the torchgpipe paper.

Pipe combines pipeline parallelism with checkpointing to reduce peak memory required to train while minimizing device under-utilization.

You should place all the modules on the appropriate devices and wrap them into an nn.Sequential module defining the desired order of execution. If a module does not contain any parameters/buffers, it is assumed this module should be executed on CPU and appropriate input tensors to the module are moved to CPU before execution. This behavior can be overridden by the WithDevice wrapper which can be used to explicitly specify which device a module should run on.

Parameters:

• module (nn.Sequential) – sequential module to be parallelized using pipelining. Each module in the sequence has to have all of its parameters on a single device. Each module in the sequence has to either be an nn.Module or nn.Sequential (to combine multiple sequential modules on a single device)

• chunks (int) – number of micro-batches (default: 1)

• checkpoint (str) – when to enable checkpointing, one of 'always', 'except_last', or 'never' (default: 'except_last'). 'never' disables checkpointing completely, 'except_last' enables checkpointing for all micro-batches except the last one and 'always' enables checkpointing for all micro-batches.

• deferred_batch_norm (bool) – whether to use deferred BatchNorm moving statistics (default: False). If set to True, we track statistics across multiple micro-batches to update the running statistics per mini-batch.

Raises:

• TypeError – the module is not a nn.Sequential.

• ValueError – invalid arguments

Example::

Pipeline of two FC layers across GPUs 0 and 1.

>>> # Need to initialize RPC framework first.
>>> os.environ['MASTER_ADDR'] = 'localhost'
>>> os.environ['MASTER_PORT'] = '29500'
>>> torch.distributed.rpc.init_rpc('worker', rank=0, world_size=1)
>>>
>>> # Build pipe.
>>> fc1 = nn.Linear(16, 8).cuda(0)
>>> fc2 = nn.Linear(8, 4).cuda(1)
>>> model = nn.Sequential(fc1, fc2)
>>> model = Pipe(model, chunks=8)
>>> input = torch.rand(16, 16).cuda(0)
>>> output_rref = model(input)

Note

You can wrap a Pipe model with torch.nn.parallel.DistributedDataParallel only when the checkpoint parameter of Pipe is 'never'.

Note

Pipe only supports intra-node pipelining currently, but will be expanded to support inter-node pipelining in the future. The forward function returns an RRef to allow for inter-node pipelining in the future, where the output might be on a remote host. For intra-node pipelining you can use local_value() to retrieve the output locally.

Warning

Pipe is experimental and subject to change.

forward(*inputs)

Processes a single input mini-batch through the pipe and returns an RRef pointing to the output. Pipe is a fairly transparent module wrapper. It doesn’t modify the input and output signature of the underlying module. But there’s type restriction. Input and output have to contain at least one tensor. This restriction is applied at partition boundaries too.

The sequence of inputs are fed into the first stage of the pipeline as *inputs. As a result the positional args for this function should match the positional args for the first stage of the pipeline. The same condition applies for output of one stage of the pipeline which is the input for the next stage.

The input tensor is split into multiple micro-batches based on the chunks parameter used to initialize Pipe. The batch size is assumed to be the first dimension of the tensor and if the batch size is less than chunks, the number of micro-batches is equal to the batch size.

Only tensors are split into multiple micro-batches, non-Tensor inputs are just replicated as-is in each micro-batch. For non-Tensor outputs in the last stage of the pipeline, they are aggregated as a List and returned the user. For example, if you have 2 micro-batches returning the integer 5, the user would receive the consolidated output of [5, 5]

All the input tensors need to be on the same device as the first partition of the pipeline.

If a tensor is wrapped with the NoChunk wrapper, the tensor is not split across micro-batches and is replicated as-is similar to non-tensors.

Parameters:

inputs – input mini-batch

Returns:

RRef to the output of the mini-batch

Raises:

TypeError – input doesn’t contain at least one tensor

Return type:

RRef

Skip connections

Certain models like ResNeXt are not completely sequential and have skip connections between layers. Naively implementing as part of pipeline parallelism would imply that we need to copy outputs for certain layers through multiple GPUs till we eventually reach the GPU where the layer for the skip connection resides. To avoid this copy overhead, we provide APIs below to stash and pop Tensors in different layers of the model.

torch.distributed.pipeline.sync.skip.skippable.skippable(stash=(), pop=())

The decorator to define a nn.Module with skip connections. Decorated modules are called “skippable”. This functionality works perfectly fine even when the module is not wrapped by Pipe.

Each skip tensor is managed by its name. Before manipulating skip tensors, a skippable module must statically declare the names for skip tensors by stash and/or pop parameters. Skip tensors with pre-declared name can be stashed by yield stash(name, tensor) or popped by tensor = yield pop(name).

Here is an example with three layers. A skip tensor named “1to3” is stashed and popped at the first and last layer, respectively:

@skippable(stash=['1to3'])
class Layer1(nn.Module):
    def forward(self, input):
        yield stash('1to3', input)
        return f1(input)

class Layer2(nn.Module):
    def forward(self, input):
        return f2(input)

@skippable(pop=['1to3'])
class Layer3(nn.Module):
    def forward(self, input):
        skip_1to3 = yield pop('1to3')
        return f3(input) + skip_1to3

model = nn.Sequential(Layer1(), Layer2(), Layer3())

One skippable module can stash or pop multiple skip tensors:

@skippable(stash=['alice', 'bob'], pop=['carol'])
class StashStashPop(nn.Module):
    def forward(self, input):
        yield stash('alice', f_alice(input))
        yield stash('bob', f_bob(input))
        carol = yield pop('carol')
        return input + carol

Every skip tensor must be associated with exactly one pair of stash and pop. Pipe checks this restriction automatically when wrapping a module. You can also check the restriction by verify_skippables() without Pipe.

Return type:

Callable[[Type[Module]], Type[Skippable]]

class torch.distributed.pipeline.sync.skip.skippable.stash(name, tensor)

The command to stash a skip tensor.

def forward(self, input):
    yield stash('name', input)
    return f(input)

Parameters:

• name (str) – name of skip tensor

• input (torch.Tensor or None) – tensor to pass to the skip connection

class torch.distributed.pipeline.sync.skip.skippable.pop(name)

The command to pop a skip tensor.

def forward(self, input):
    skip = yield pop('name')
    return f(input) + skip

Parameters:

name (str) – name of skip tensor

Returns:

the skip tensor previously stashed by another layer under the same name

Return type:

None

torch.distributed.pipeline.sync.skip.skippable.verify_skippables(module)

Verifies if the underlying skippable modules satisfy integrity.

Every skip tensor must have only one pair of stash and pop. If there are one or more unmatched pairs, it will raise TypeError with the detailed messages.

Here are a few failure cases. verify_skippables() will report failure for these cases:

# Layer1 stashes "1to3".
# Layer3 pops "1to3".

nn.Sequential(Layer1(), Layer2())
#               └──── ?

nn.Sequential(Layer2(), Layer3())
#                   ? ────┘

nn.Sequential(Layer1(), Layer2(), Layer3(), Layer3())
#               └───────────────────┘       ^^^^^^

nn.Sequential(Layer1(), Layer1(), Layer2(), Layer3())
#             ^^^^^^      └───────────────────┘

To use the same name for multiple skip tensors, they must be isolated by different namespaces. See isolate().

Raises:

TypeError – one or more pairs of stash and pop are not matched.

Tutorials

The following tutorials give a good overview of how to use the Pipe API to train your models with the rest of the components that PyTorch provides:

• Training Transformer models using Pipeline Parallelism

• Training Transformer models using Distributed Data Parallel and Pipeline Parallelism

Acknowledgements

The implementation for pipeline parallelism is based on fairscale’s pipe implementation and torchgpipe. We would like to thank both teams for their contributions and guidance towards bringing pipeline parallelism into PyTorch.
